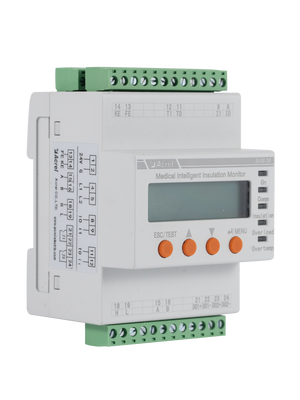

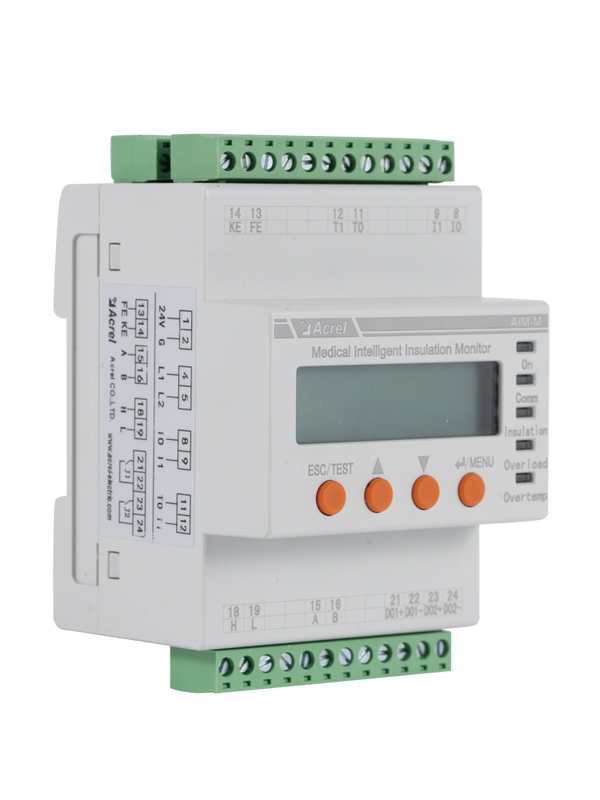

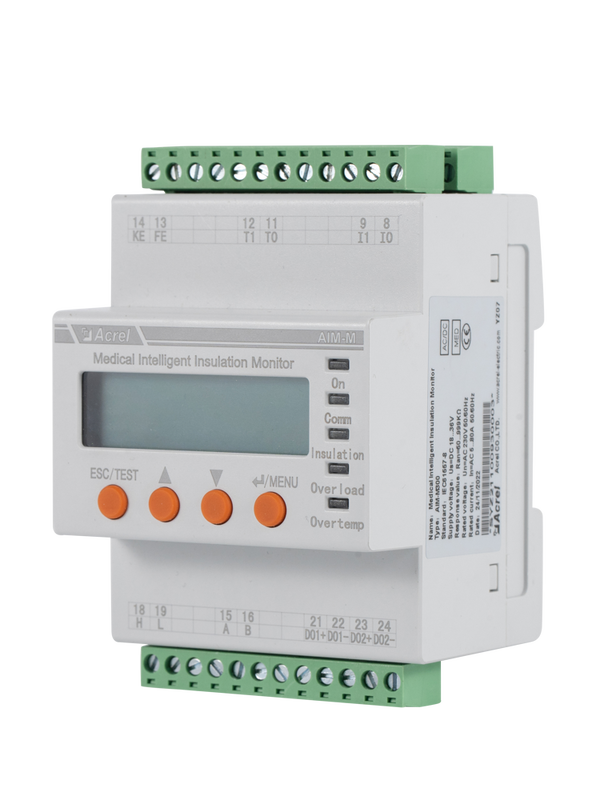

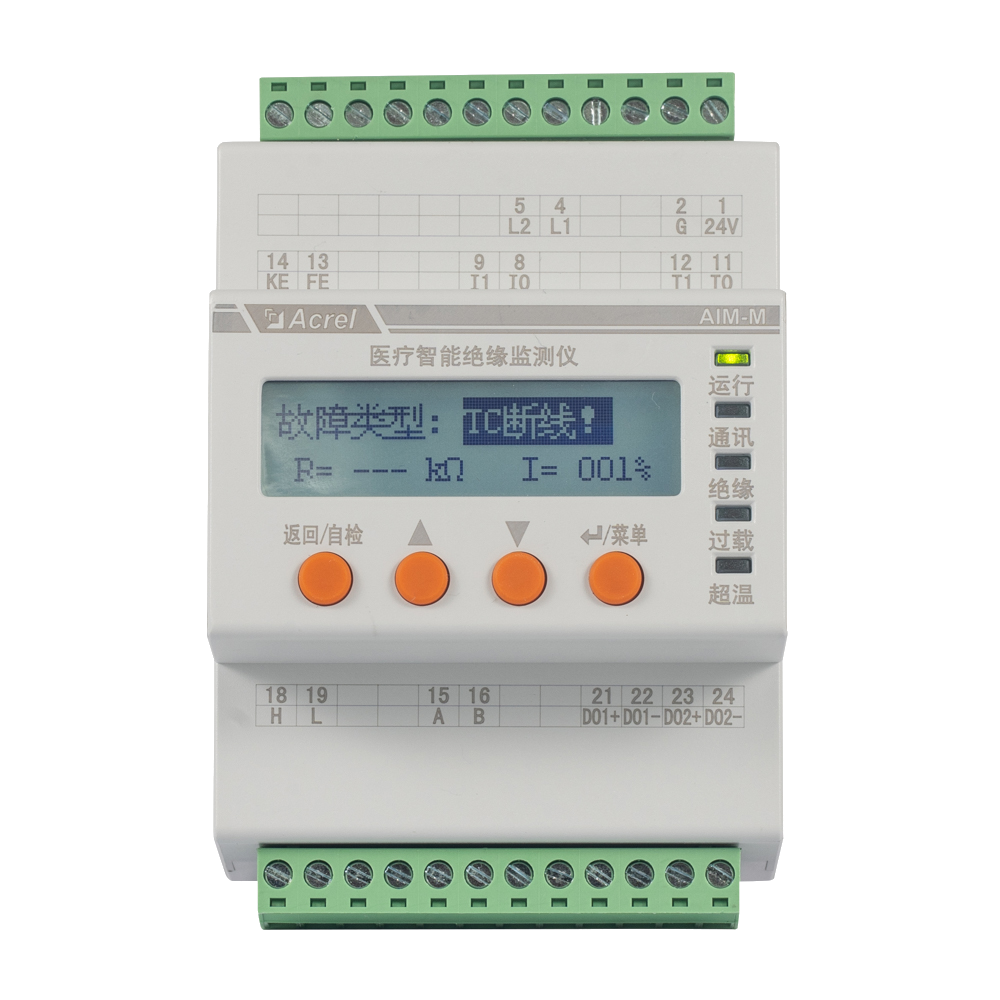

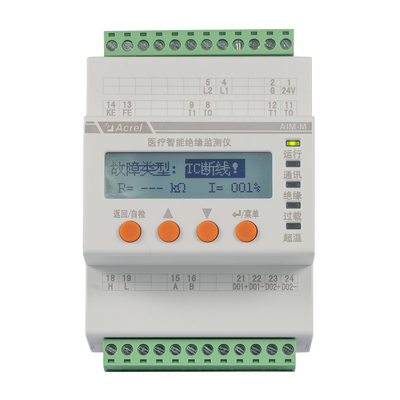

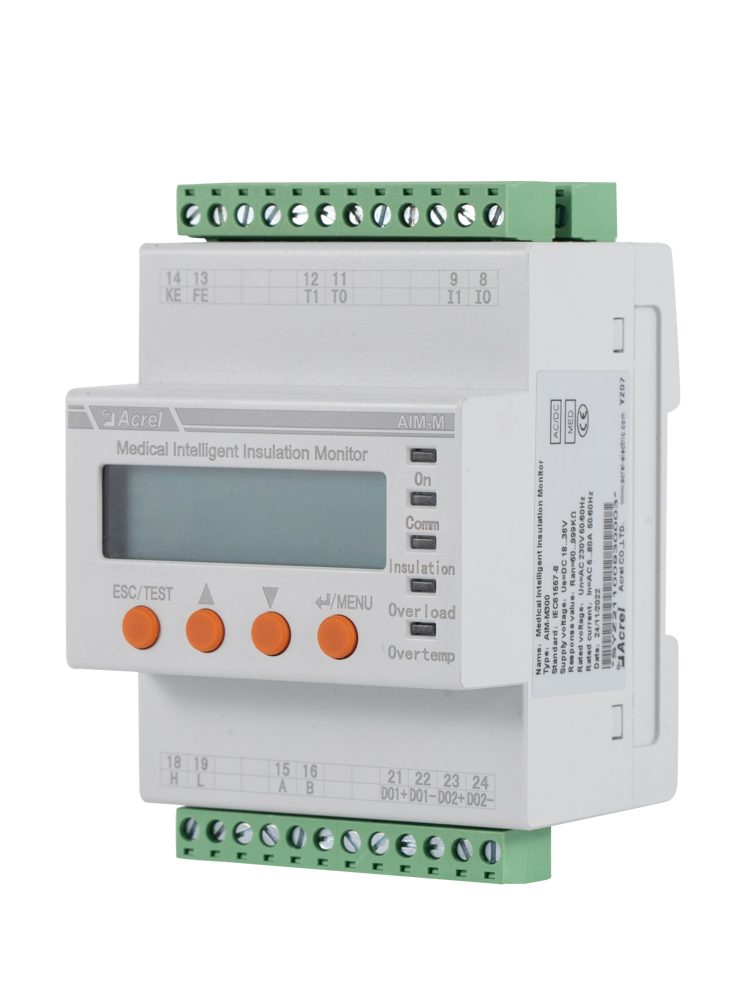

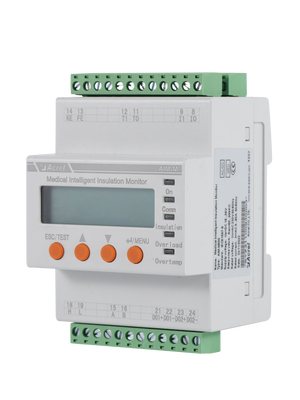

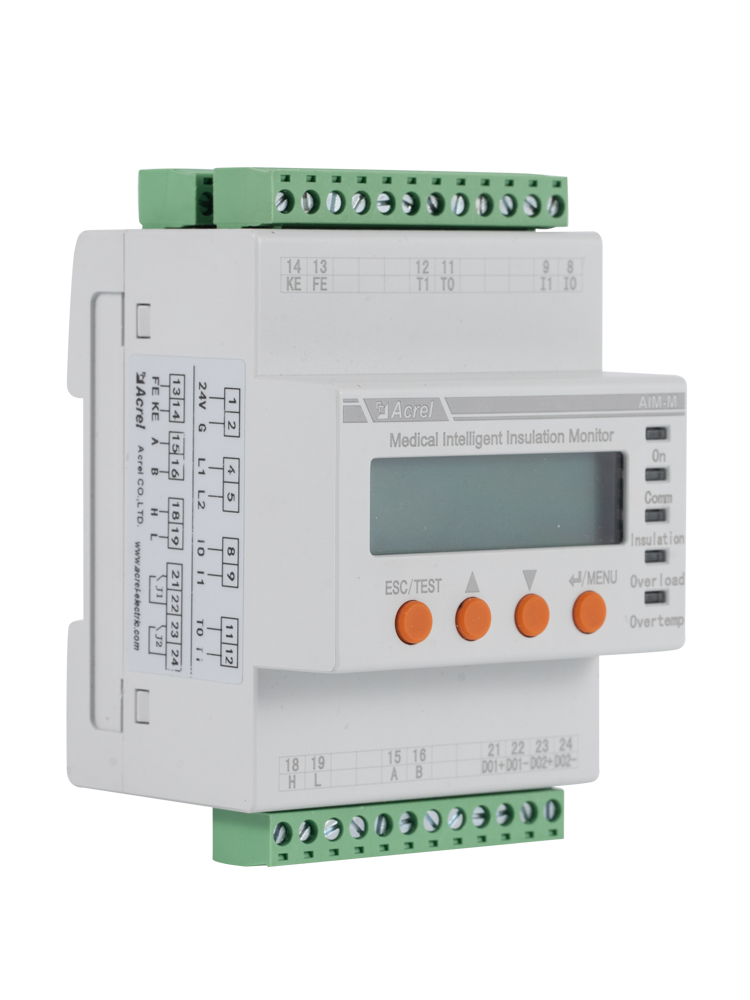

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
अब से संपर्क करें

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room

न्यूनतम आदेश मात्रा : 1 मूल्य : 1714 USD/unit
पैकेजिंग विवरण : कार्टन पैकिंग 33*24*18 सेमी प्रसव के समय : 7 कार्य दिवस
भुगतान शर्तें : टी/टी आपूर्ति की क्षमता : प्रति दिन 100 पीसी
उत्पत्ति के प्लेस: Jiangsu ब्रांड नाम: Acrel
प्रमाणन: CE/ IEC/ DIN EN 61577-8 मॉडल संख्या: AIM-M300

विस्तार जानकारी
एलईडी संकेतक: ऑन, इंसुलेशन, ओवरलोड, ओवरटेम्प आवेदन: चिकित्सा आईटी प्रणालियों के लिए इन्सुलेशन निगरानी
संचार: आरएस485 (मोडबस-आरटीयू) + कैन

उत्पाद विवरण

The AIM-M300 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M300 is designed to support insulation fault location.AIM-M300 series medical intelligent monitoring device adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is suitable for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.

Basic Specification:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 0

Dimension:

                                                      Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 1

Diagram:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 2Function:

1. Functions of real-time monitoring and fault alarming of the grounding insulation resistance,transformer load current and transformer winding temperature of the monitored IT system;
2. Locating current injector for insulation fault location systems;
3. Real-time monitor the line disconnection fault, current sensor disconnectiobn,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2s after the fault occurs. when the fault occurs;
4. Relay alarm output, LED alarm indication and other faults indication functions;
5. Two kinds of fieldbus communication technology, which are used for centralized alarm and display device, insulation fault locator and upper computer management software communications, and monitoring the operation status of IT system in real time.
6. Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.
